ATF4

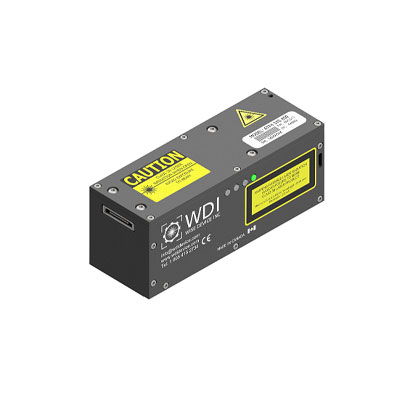

The ATF4 sensor is an advanced digital autofocus solution designed to integrate seamlessly into modern microscopy and imaging systems. Whether paired with customer-supplied or WDI microscope systems, the sensor delivers fast, reliable, and precise focusing capabilities for a variety of applications, including glass inspection, live cell imaging, high content screening, genotyping and DNA sequencing applications.
Comparison: Product ATF4 & PFA-DT
| Autofocus Sensor | ATF4 | PFA-DT | ||||
|---|---|---|---|---|---|---|
| Structured Light Pattern | Single Dot | Single Dot | ||||
| Wavelengths Available nm | 658 | 785 | 850 | 660 | 785 | 850 |
| Power Output mW | 0.28 | 0.8 | 0.17 | 0.26 | 0.72 | 0.15 |
| Maximum Standoff Distance | 200mm | 200mm | ||||
| Communication Differences | RS232/RS422 | Gigabit Ethernet, RS485 | ||||
| Output Data Rate | Up to 1.2kHz | Up to 8kHz | ||||
| Static Autofocus Repeatability | ± 1/3 Objective Depth of Field | ± 1/4 Objective Depth of Field | ||||
| Fast Tracking Autofocus Repeatability | ± 1/2 Objective Depth of Field | ± 1/3 Objective Depth of Field | ||||
| Laser Classification | 2 | 3B | 3B | 1M | 1M | 1 |
Features
- Static or Dynamic Focus: The ability to maintain focus on a variety of surfaces and substrates that are stationary or moving in real-time.
- Flexibility: Supports integration with WDI Z-axis actuators and can interface with many different third-party Z motion systems including; Piezo actuators, and Dover Motion’s DOF-5.
- Offset Adjuster (OA) lens versions available to compensate for variances between the sensor focal plane and the camera imaging plane.
- Available laser wavelengths include 658nm, 785nm, 850nm.
Applications
- Precision microscopy in biomedical and semiconductor industries, including glass inspection, live cell imaging, high content screening, genotyping and DNA sequencing applications.
